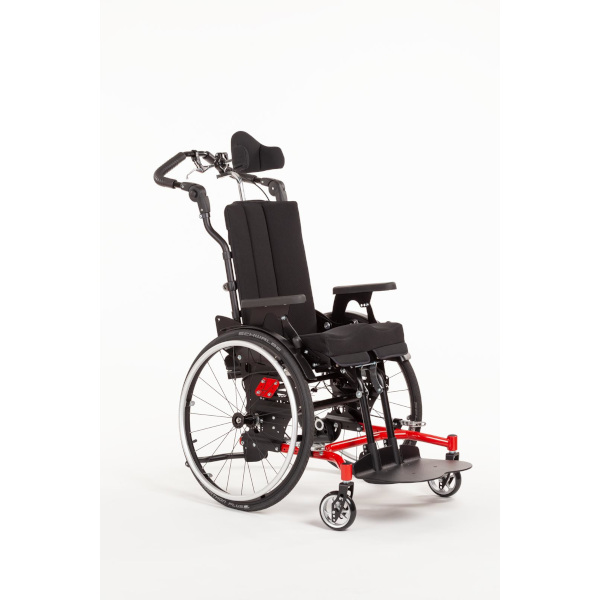

Assistive Product SWINGBO-VTi | SWINGBO-VTi XL

Product Type:

Wheelchair base frame for fitting with a seat shell,
for children and young people

Description:

The Swingbo-VTi system children's wheelchair is a wheelchair base frame for children. The Swingbo-VTi wheelchair is offered as a modular system to enable individualized care. The wheelchair is also available in an XL version, which allows a higher load capacity.

Features / Components:

  • Frame: Aluminum frame, rigid
  • Push handles / push bar: removable
  • Back: back angle adjustable / fold-down, height-adjustable
  • Seat dimensions: seat width selectable, depth-adjustable, height-adjustable
  • Armrests: PU
  • Footrests: angle-adjustable, fold-up
  • Drive: push rim drive
  • Push rims: Aluminum, narrow / wide attachment
  • Wheels: selectable wheel sizes, removable, wheelbase adjustable, selectable camber
  • Tyres Drive wheels: Hoggi Light, pneumatic tyres / puncture-proof PU tyres; tyres Steering wheels: solid rubber tyres
  • Brake: knee lever brake
  • Other: anti-tipper
  • Frame color: various colors; Cover color: various colors

Price (without guarantee):

The price is available from the manufacturer / distributor.

SHI-Number:

SHI-Medical Technical Aids Register | 18.50.03.2011 | 18.50.03.2015

Product Information from the Manufacturer / Distributor:

Weitere Details zum SWINGBO-VTiFurther Product Details
Weitere Details zum SWINGBO-VTi XLFurther Product Details

REHADAT does not sell any products

Please contact the manufacturer or distributor.

Manufacturer:

HOGGI GmbH
Eulerstr. 27
56235 Ransbach-Baumbach
Telephone: 02623 92499-0 Email: info@hoggi.de Homepage: https://hoggi.de/de

Distributor:

HOGGI GmbH
Eulerstr. 27
56235 Ransbach-Baumbach
Telephone: 02623 92499-0 Email: info@hoggi.de Homepage: https://hoggi.de/de

Sanitäts-Fachhandel oder orthopädie-technischer Fachbetrieb
Adressen bitte im Internet recherchieren.
Homepage: https://biv-ot.org/ueber_uns/mitglieder/sanitaetshausdatenbank/index_ger.html

Technical Data:

VTi VTi XL
Seat width: 24 / 26 / 28 / 30 / 32 / 34 / 36 cm 36 / 40 / 44 cm
Seat depth: 24 - 30 / 24 - 32 / 26 - 34 / 28 - 36 / 30 - 38 / 32 - 40 / 34 - 42 cm (depending on SB) 34 - 46 / 38 - 50 cm (depending on SB)
Seat height: 37 - 47 cm 41 - 51 cm
Seat angle: -5 to +45 degrees -5 to +45 degrees
Back height: 33 - 42 / 35 - 44 / 37 - 46 / 39 - 48 / 41 - 50 / 43 - 52 / 45 - 54 cm 45 - 54 / 50 - 59 / 54 - 63 cm
Back angle: 75 - 115 / 80 - 120 degrees (in 10 degree increments) 75 - 115 / 80 - 120 degrees (in 10 degree increments)
Drive wheels: 20 / 22 / 24 inch 22 / 24 inch
Steering wheels: 4 / 5 / 5.5 inches 4 / 5 / 5.5 inches
Camber: 3 / 6 / 9 degrees 3 / 6 / 9 degrees
Load capacity: 60 kg 75 kg

GKV medical aid numbers:
Swingbo-VTi: 18.50.03.2011
Swingbo-VTi XL: 18.50.03.2015

Options / Accessories:

  • Push handles / push bar: foldable
  • Headrest: various versions, upholstered
  • Back: angle-adjustable, height-adjustable, in hollow shape, back cushion
  • Seat: seat plate, seat cushion
  • Armrest: various sizes, with edge compensation
  • Footrests: interlocking, aluminum / plastic, one-piece / split, angle-adjustable, with heel edge
  • Push rims: VA push rims, push rim cover
  • Tires Steering wheels: Skate wheel / PU tires
  • Brake: Drum brake
  • Other: transport lock, power knot system, various pads, abduction wedge, knee angle system 90 degrees, therapy table, safety belts, special construction

ICF Items

Reference Number:

IW/122203.513


Last Update: 12 May 2025
